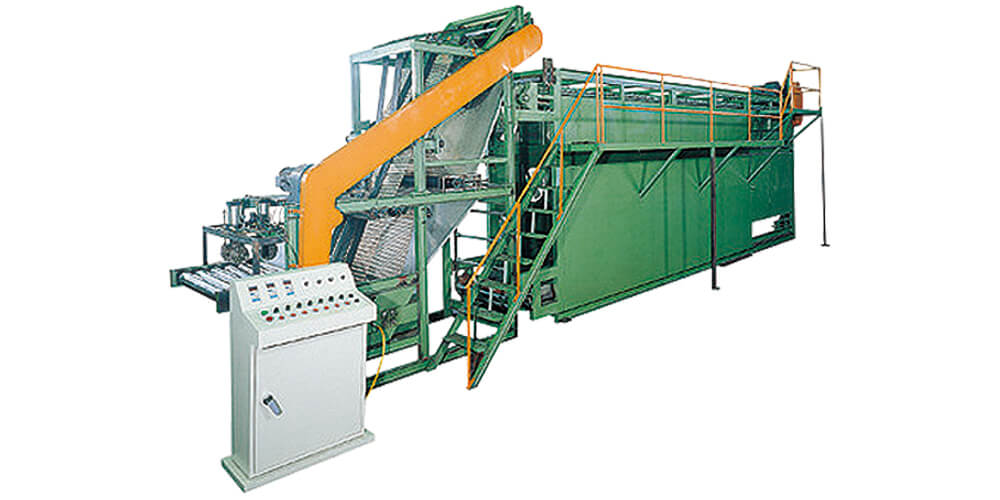

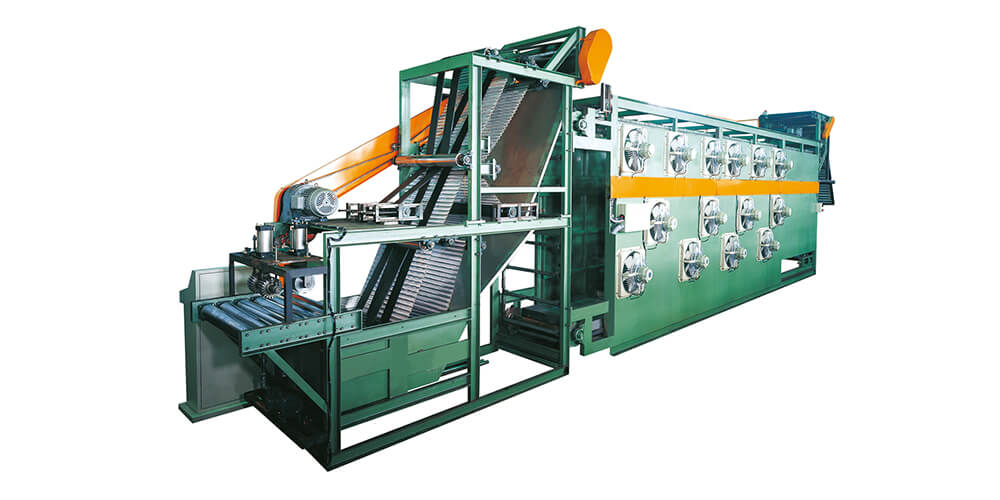

Hanger Type Batch Off Cooling Machine

Hanger Type Batch Off Cooling Machine
Description

The main function of batch off machine is for cooling and storage of rubber sheet. Then, the rubber sheet after cooling will be delivered to next process.

The cooling method of batch off machine can be fan cooling, water cooling and air cooling for matching to different requirement.

We have hanger type and flat type (mesh type) batch off machine according to different delivery method of rubber sheet.

Machine Dimensions
Hanger Type Batch off Machine

The main structure of hanger type batch off machine consists of sheet inlet section, sheet storage section and sheet output section.

According to delivery direction of sheet inlet and outlet, hanger type batch off machine can be sorted in two types as below:

1.Straight type batch off machine

2.O-type batch off machine(based on customer's specifications)

Optional Equipment for Hanger Type

1.Mark printng device:the numbercal and letter can be marked on the rubber.

2.Rubber sheet jointing device:each batch of rubber sheet can be jointed by the jointing device whitch is equipped on top of conveyor of sheet inlet section.

The sheet output section of hanger type bath off machine can be designed to 3 devices according to different purposes (option)

Specifications
Model BO-H500 BO-H1000
Max Sheet Width 500 1000
Sheet Thickness 5-12 mm 5-12 mm
Max Sheet Inlet Speed 30M/min(Max) 30M/min(Max)
Gap Between Hanging Bar of Sheet Storage Section 120 150 200mm 120 150 200mm
Sheet Hanging Length 1300-1800mm 1300-1800mm
Total Power 14HP 14HP
Cooling Method Water/Air Cooling Water/Air Cooling
Power Of Cooling Fan 0.5HP/1PC 0.5HP/1PC
Sheet Temp. After Cooling (for Reference) Surrounding Temp+5o Surrounding Temp.+5o
Dimension 13340(L)*1820(W)*3800(H) 13340(L)*2100(W)*3800(H)
