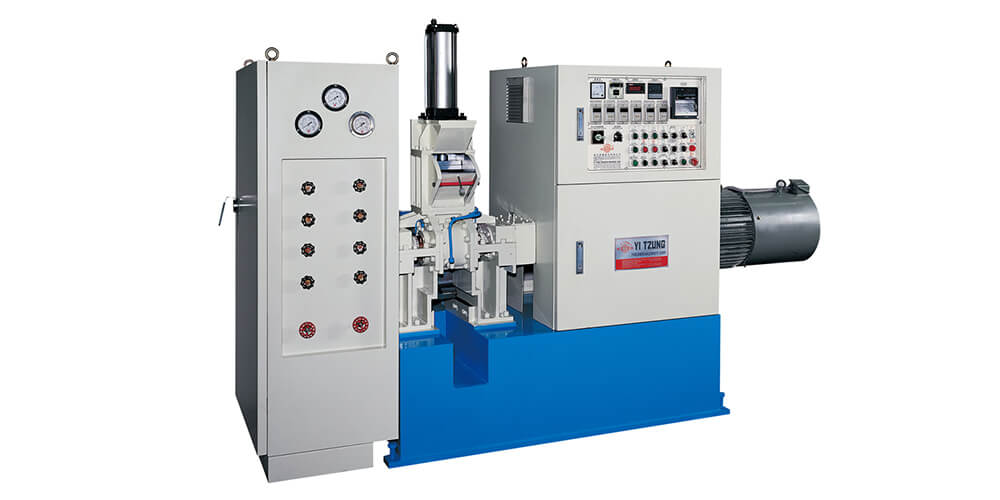

Laboratory Intensive Mixer
This 1.8L Laboratory Intensive Mixer is designed for material research and development applications in the laboratory. It consists of several mechanisms such as:rotors in the heating chamber(mixing chamber),a dust stop system,a pressurized material feeding system, a material outfeed system, a transmission system, heating/cooling systems, air and hydraulic systems, and an electric control system. The machine features a same-compounding function-as that on production-type mixers.The drive system provides a choice of variable or fixed speeds.
TEMPERATURE REGULATION:The heating chamber (mixing chamber) and rotorsave built with water circulation sleeves assuring excellent cooling effect and heat transfer efficiency.
OPTIONAL EQUIPMENT:5 step timer, PLC, temperatore, speed and motor current recoder.
DUST STOP COMPARISON:A spring-loaded type stopper.
Tangential Rotor:There are two blades on the rotor.Both rotors run at different speeds causing non-engagement of the blades.
Engaged Rotor:There are two blades on the rotor.Both rotors run at the same speed causing engagement of the blades.
| Model | Net Capacity | Roller Speed | Inverted Control Motor | Dimensions |
|---|---|---|---|---|
| IM1.8L | 1.8L | (F)6.6~66 r.p.m | AC 25 HP | (L) 2800(mm) |
| (R) 6~60 r.p.m | (W) 1200(mm) | |||
| IME1.8L | 1.8L | (F)6.6~66 r.p.m | AC 25 HP | (H) 1850(mm) |
| (R)6.6~66 r.p.m |
