Rubber / Plastic Mixer Machine

Rubber / Plastic Mixer Machine
Description

The Intensive Plastic Mixer is designed for efficiently mixing compounds and various types of plastics. This machine features a robust structure consisting of a main air cylinder, floating weight, feeding door, mixing chamber, rotors, and a discharge device.

During operation, materials and ingredients are fed into the mixing chamber simultaneously. Inside, the rotors continuously shear and compress the materials, facilitating a series of chemical interactions that allow the components to bond into a uniform paste-like mass. The mixing process is precisely controlled according to the set temperature and processing conditions, ensuring optimal results.

This rubber mixer machine and plastic mixer is specially engineered for high-efficiency mixing and refining of a wide range of raw materials, including raw rubber, resins, asphalt, cellulose, PVC, EVA, and more. Its advanced design ensures superior mixing performance, making it an essential solution for various industrial applications.

Features
  • Short mixing time. High efficiency.
  • Ruggedly constructed throughout. Easy to operate.
  • Superior cooling system.
  • Outstanding mixing performance and dispersion effect.
  • No material leakage ensures a clean working environment.
Specifications

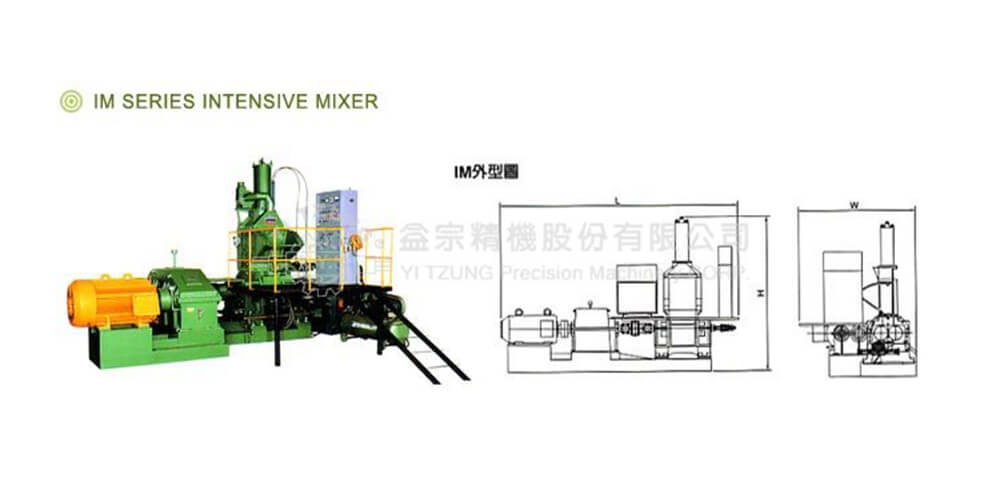

IM Series Rubber Intensive Mixer Machine
Rubber Mixer Machine Supplier by Yi Tzung Precision Machinery Corp.
Model Mixing Capacity
(L)
Main Motor
(HP)
Rotors Revolution
(R.P.M)
Machine Dimensions (mm)
H L W
IM-35 35 75-100 35/30 3150 5100 2550
IM-50 50 125-150 35/30 3370 5400 3600
IM-75 75 200-250 35/30 3600 6890 2850
IM-100 100 300-350 35/30 4300 6745 3650
IM Series Plastic Intensive Mixer (180L / 240L / 270L)
Plastic Mixer Supplier by Taiwan Yi Tzung
Model Mixing Capacity
(L)
DC Motor
(HP)
Rotors Revolution
(R.P.M)
Machine Dimension for Reference (mm)
Fixed Speed Variable Speed H L W
IM-180 180 700-1000 60 6~60 5190 2430 1770
IM-240 240 1200-1500 60 6~60 5650 2450 2010
IM-270 270 1500-2000 60 6~60 5715 2460 2100
